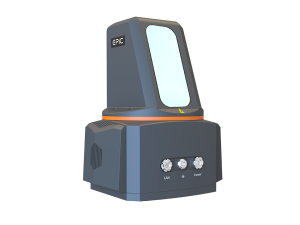

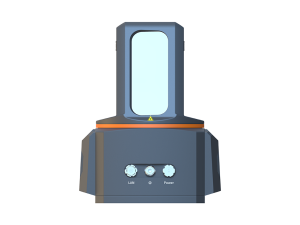

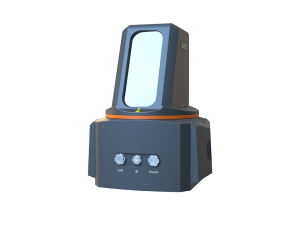

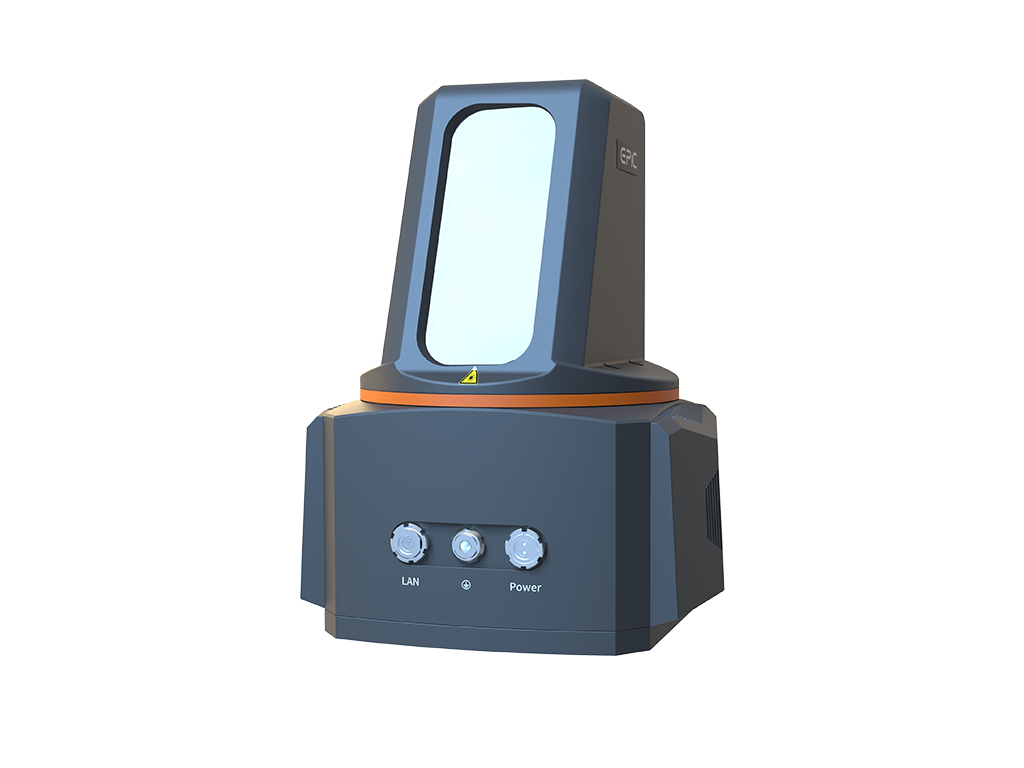

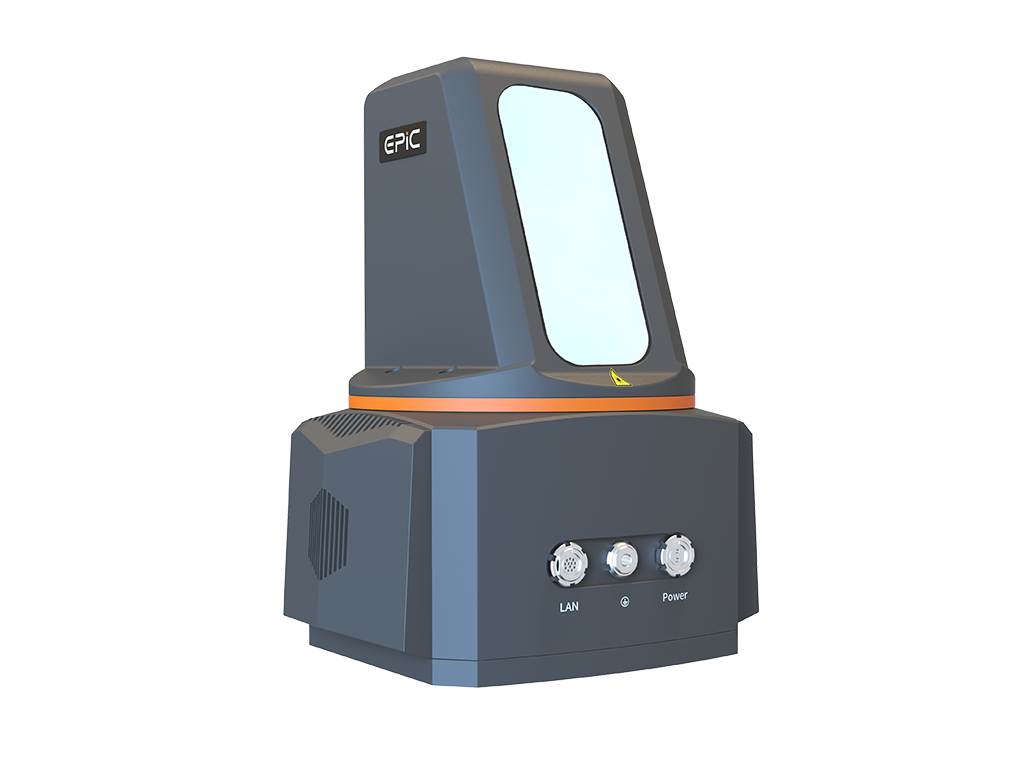

Built with a rugged, reliable design, the T1000 is engineered for demanding environments such as plateaus, deserts and glaciers. Powered by ARR Echo Reconstruction Technology, it combines long-range measurement with high pulse rates to capture high-fidelity 3D point clouds for large-scale surveying and industrial applications.
EPiC Capture brings scanner control, data acquisition, real-time visualization, and in-field quality checks into a streamlined terrestrial laser scanning (TLS) workflow. Offering flexible control via hardware, mobile app, and web interface, it also supports in-field pre-registration and RTK positioning, enabling users to verify data coverage and quality before leaving the site.

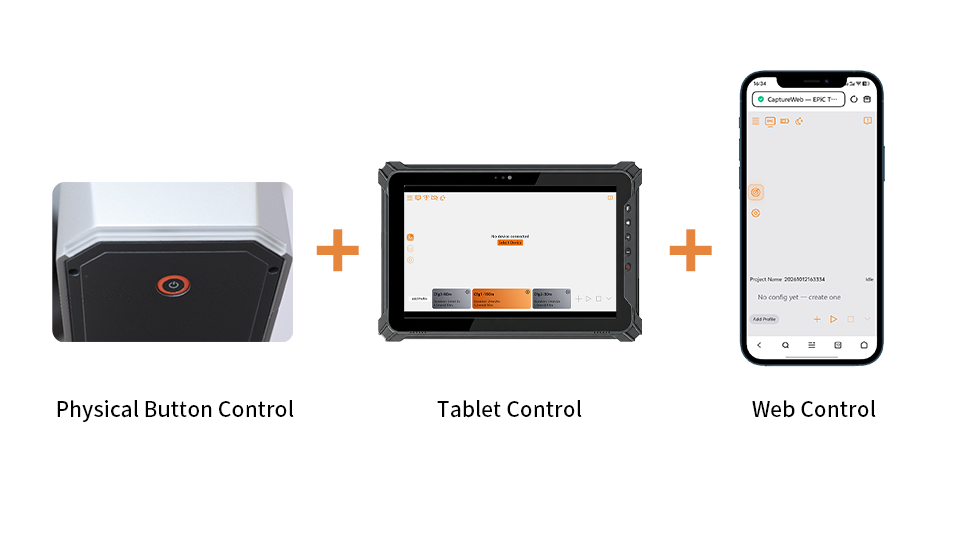

Multi-Platform Web Control

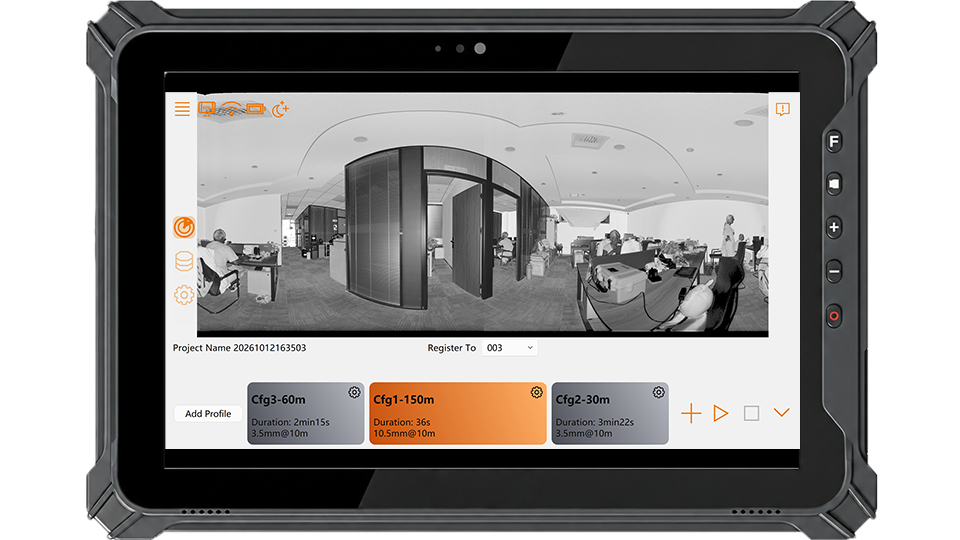

Real-Time Data Preview

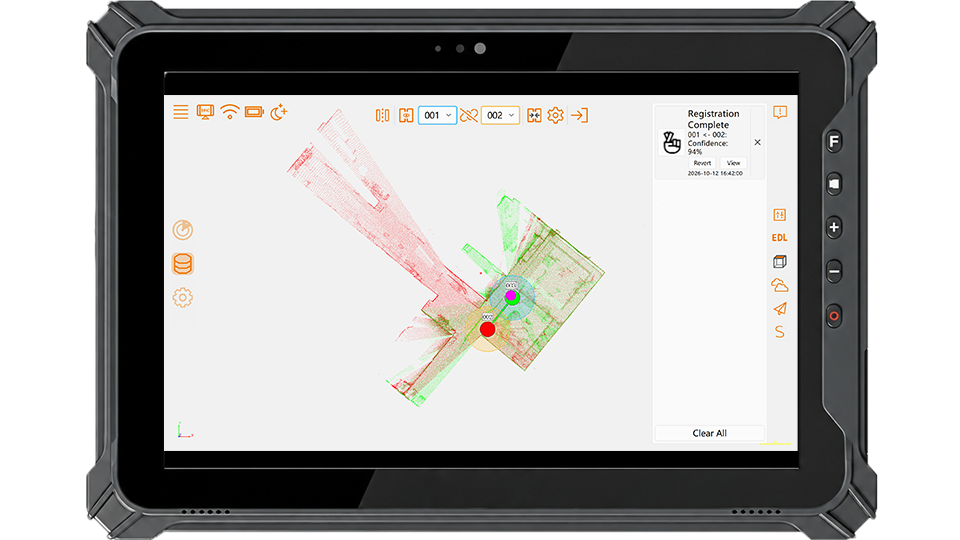

In-Field Pre-Registration

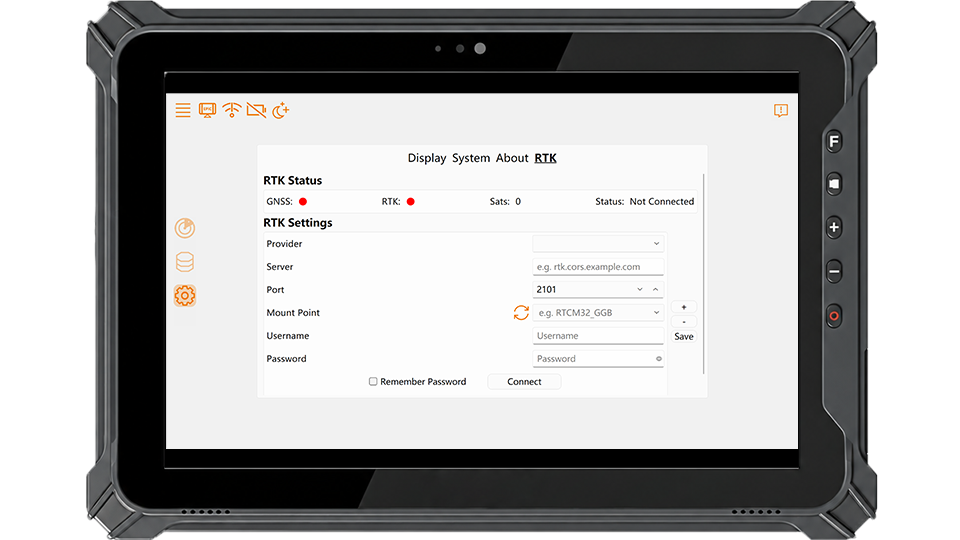

RTK Positioning

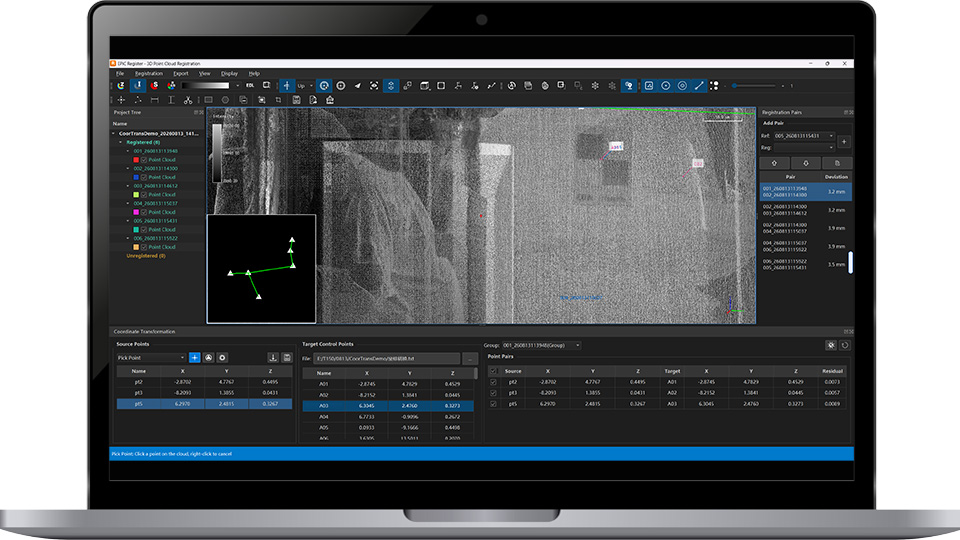

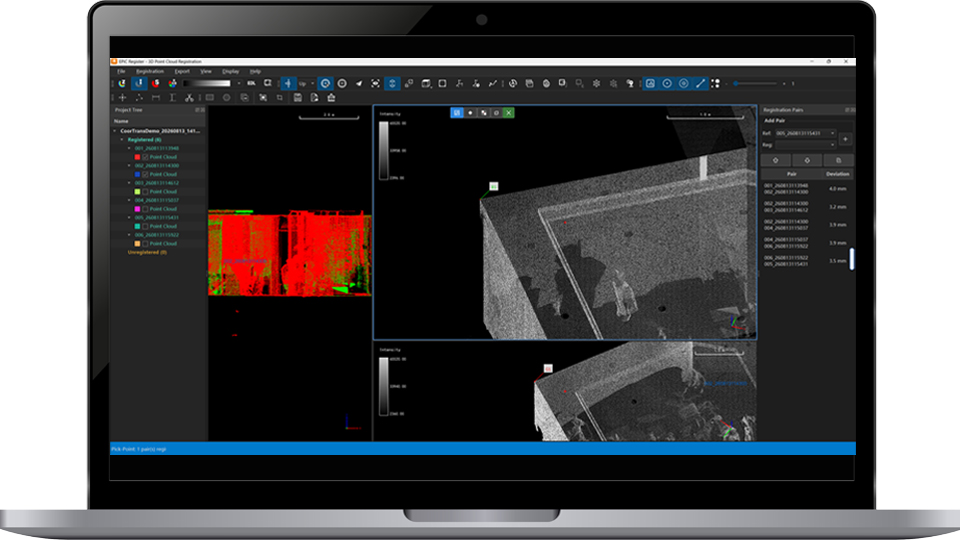

EPiC Register is professional point cloud registration and processing software for multi-station terrestrial laser scanning projects. It supports flexible registration,massive point cloud processing, registration optimization, georeferencing, and standard point cloud export,enabling efficient workflows and accurate, reliable data delivery.
Multiple Registration Methods

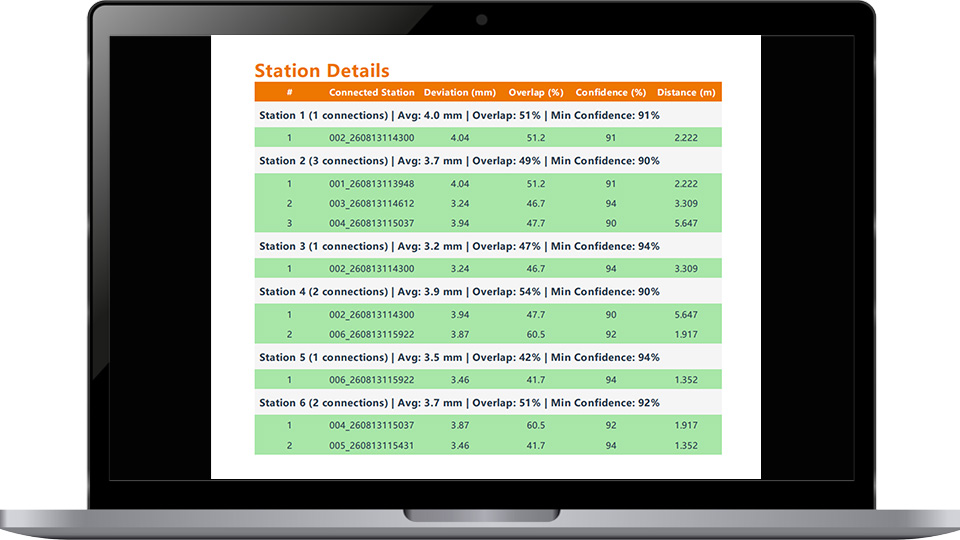

Registration Optimization
Georeferencing & Control Points

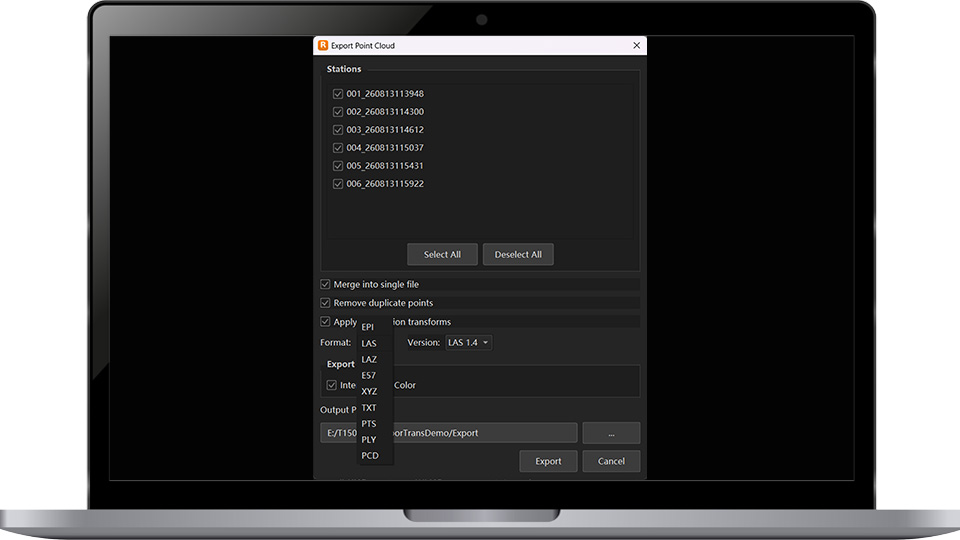

Standard Point Cloud Export
| Weight | 7kg |
| Dimensions | 210mm × 163mm × 270mm |
| External Power Supply | Input Voltage 18~33V DC |
| Power Consumption | Typ. 50W |
| Data Communication Interface | GigE |
| Humidity | Non-condensing |
| Operating Temperature | -20℃~+50℃ |
| Storage Temperature | -30℃~+60℃ |
| Dual-axis Tilt Seneor Range | ±5° |
| Scan Principle | ToF |
| Laser Product Classification | Class I |
| Wavelength | NIR |
| Laser Pulse Repetition Rate | 100~2000 kHz |
| Max. Measuring Range | 1400m@80% |
| Min. Measuring Range | 1.5m |
| Precision | 3mm@100m |
| Accuracy | 5mm@100m |
| Laser Beam Divergence | 0.35 mrad |
| Vertical FoV | 360°x100°(-40°~+60°） |
| Horizontal FoV | 360° |
| Scan Speed | Vertical:12~150lines/sec |
| Horizontal: max.18°/sec | |
| Angle Measurement Resolution | 0.001° |
| Resolution of Panoramic Image | Approx.100 MP |
| FoV | 360°x 110° |
| Weight | Approx. 564g |
| Storage | Built-in SD Card 128GB |
| Dimension | 112mm×96.7mm×156.3mm |
| Focal Length | 16mm |
| Expandable | RTK Quick Mouting Adapter |
