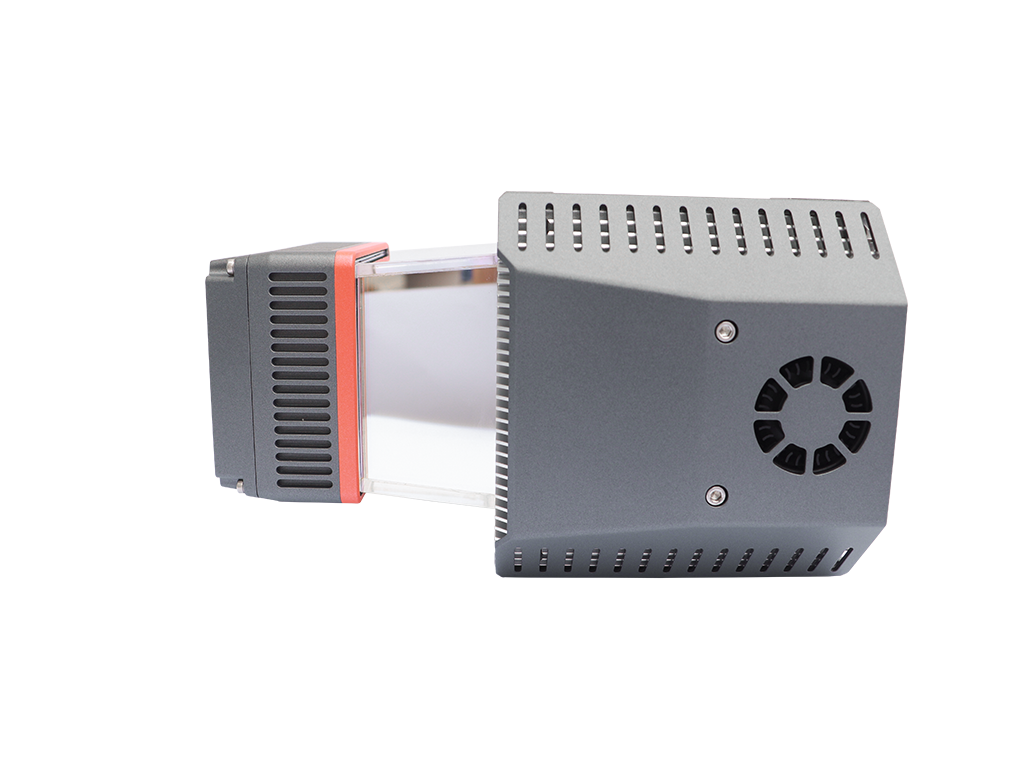

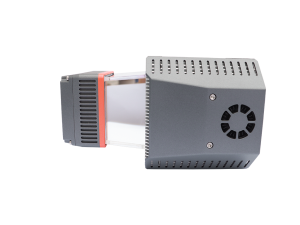

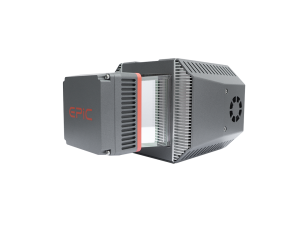

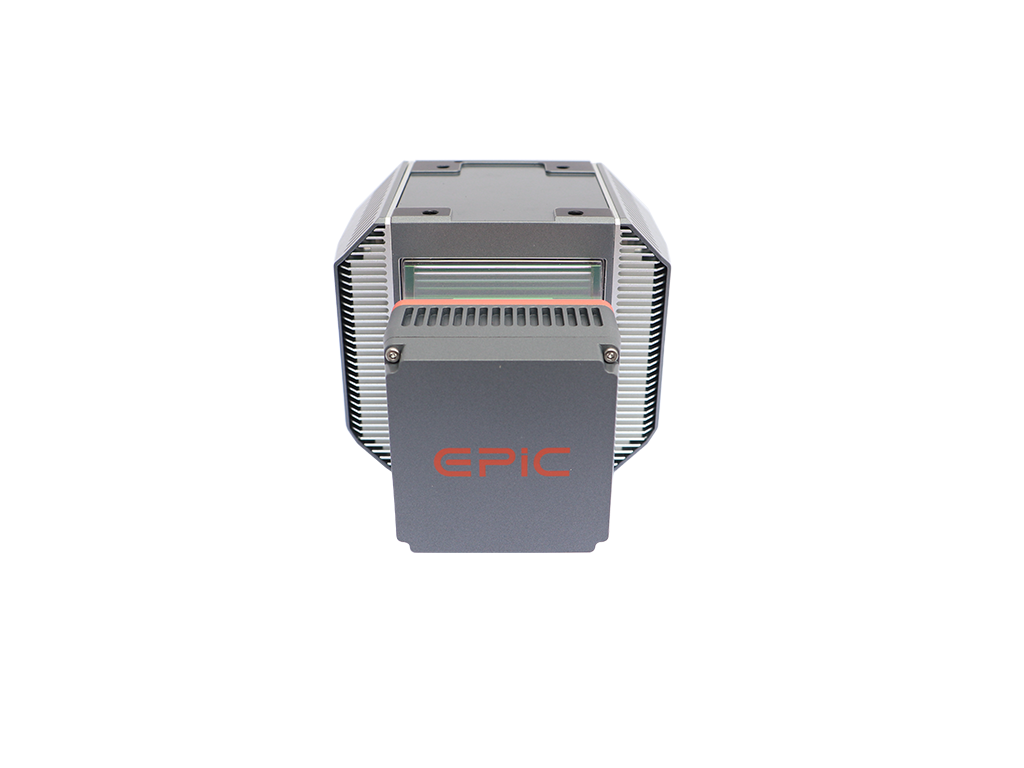

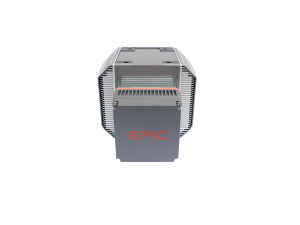

P30 MMS LiDAR Sensor

High-Precision Capture for Mobile Mapping

Engineered for high-precision 3D capture, the P30 combines a 30 m range, sub-2 mm accuracy, and a 360° field of view to deliver dense, uniform point clouds. Its compact design and versatile system compatibility make it ideal for seamless integration into mobile mapping systems and other platforms.

Weight

2.4kg

Range

1~30m@ 80%

Max.PRR

800kHz

Max Scanning Speed

250 Lines/sec

Accuracy

≤2mm @ 30m

Main Features

2 mm Ranging Accuracy

High-precision measurements for reliable, high-quality mobile mapping.

800 kHz Pulse Repetition Rate (PRR)

High-density point cloud acquisition for vehicle-based surveying and mapping.

API & SDK Support

Seamless integration with GNSS/INS, cameras, and mobile mapping system (MMS) platforms.

Play Video

Application

Railway Infrastructure Surveying

Road Infrastructure Surveying

Tunnel Surveying & Inspection

Railway Infrastructure Surveying

Road Infrastructure Surveying

Tunnel Surveying & Inspection

Product Parameters

Weight	2.4 Kg
Dimensions	145mm × 110mm × 186mm
Power Supply	20 – 33V DC
Power Consumption	Typ. 45W
Operating Temperature	-20°C to 50°C
Storage Temperature	-40℃ to 60℃

Scan Principle	ToF
Laser Class	Class I
Wavelength	NIR
Laser Pulse Repetition Rate	800kHz
Range	1~30 m @ 80%
Ranging Accuracy	≤2mm @ 30m
Max. Scanning Speed	250 lines/second
FoV	360°
Angle Measurement Resolution	0.003°

* Specifications are subject to change without notice.

View P30 Sample Data
