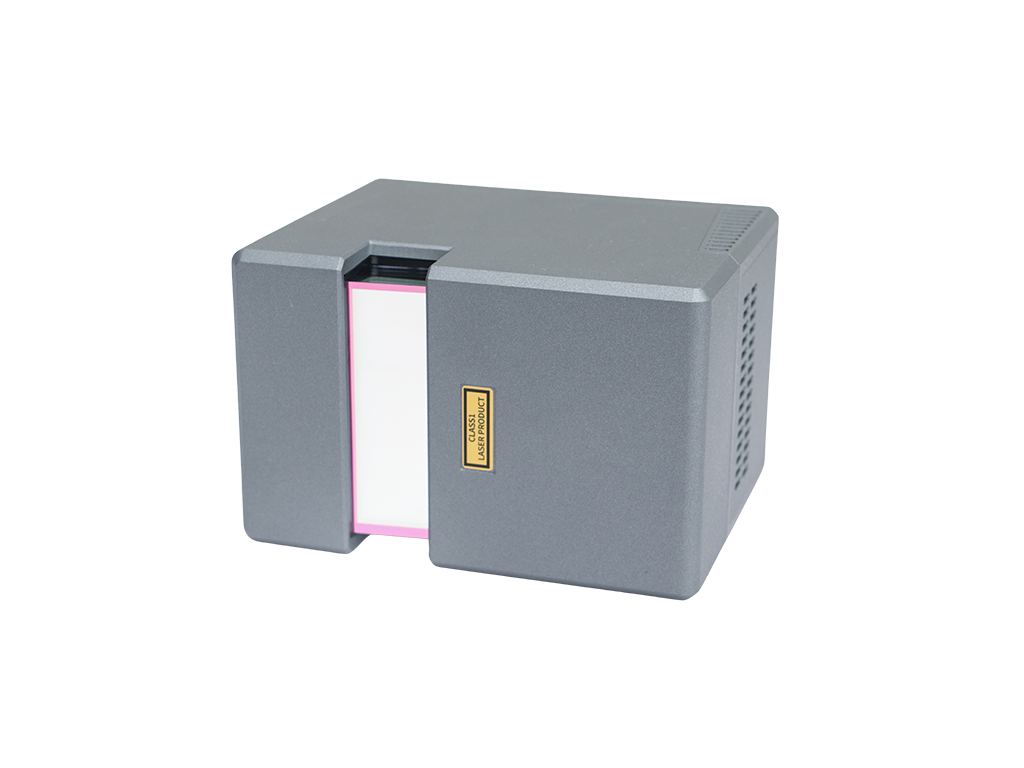

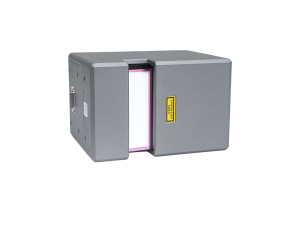

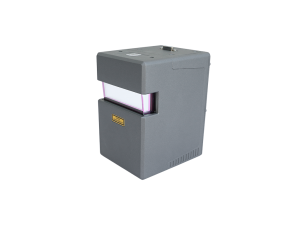

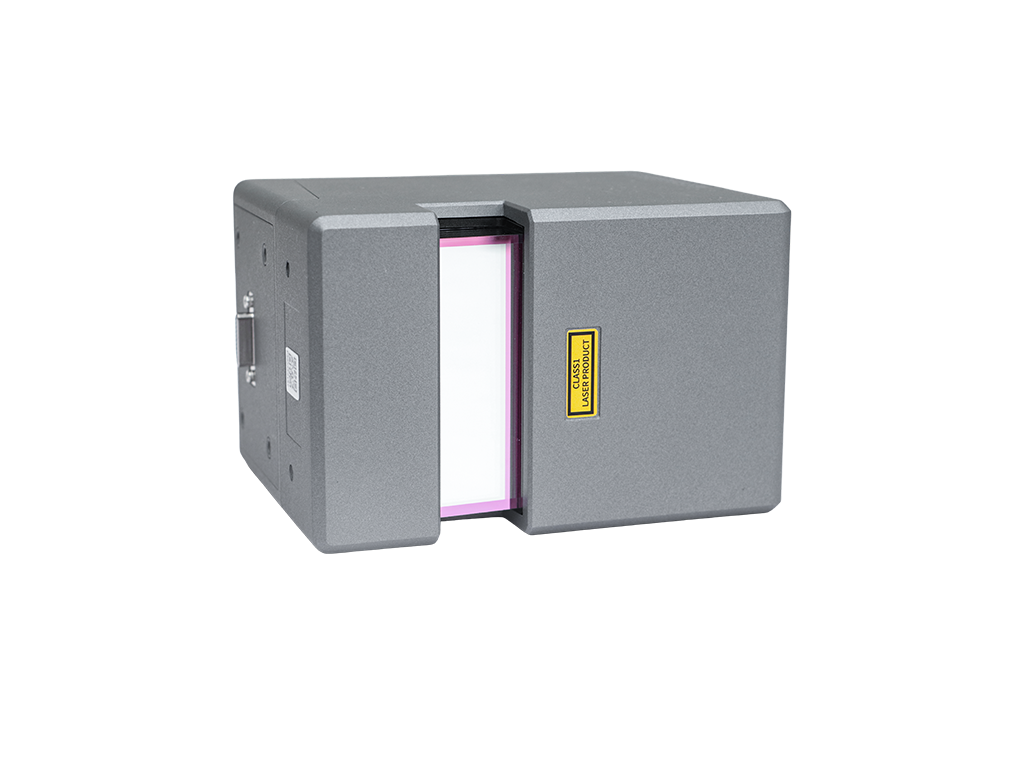

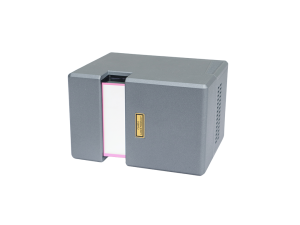

The P500 is an in-house developed UAV LiDAR sensor featuring proprietary waveform processing algorithms that enable millimeter-level ranging accuracy within 100 m. With open communication and power interfaces, along with an SDK, it supports flexible integration with a range of POS systems and UAV platforms.
| Weight | 930g |
| Dimensions | 135mm × 88mm × 108mm |
| Power Consumption | Typ. 40 W |
| Power.Supply | 9–28 VDC |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40℃ to 60℃ |
| Scan Principle | ToF |
| Laser Product Class | Class 1 |
| Wavelength | NIR |
| Laser Pulse Repetition Rate | 100~1000 kHz |
| Range | 3~1450 m@80 % |
| Precision | 5mm@100m |
| Accuracy | 10mm@100 m |
| Scanning Method | Single Beam Scanning |
| Scanning Speed | 90~300 Lines/sec |
| FoV | 80° |
| LaserBeam Divergence | 0.5 mrad |
| Angle Measurement Resolution | 0.0018° |
| Return | 7 |
